Simple DALI Rotary Switch For DALI dimming

$141.00$187.00 inc gst $122.61 exc gst

This product is a DALI-2 rotary switch only, required for multiway DALI dimming when purchased with a Simple DALI Rotary Dimmer (IEL-Z8-1-PSU c/w DALI-2 PSU) or Simple DALI Dimmer (IEL-Z6-1-PSU c/w DALI-2 PSU).  This DALI rotary switch can also be used with IEL-zc-pir-st-da (Simple DALI pir sensor with DALI PSU).

When installed with any of the above products, this rotary switch provides “out of the box” control (no programming required).

The DALI-2 rotary switch comes with NZ style faceplate as default. If required the rotary can be used in an alternative client-supplied faceplate with a 30-series mount.

For further information see schematic and download datasheets from description tab below.

Clear

Simple DALI Rotary Switch for DALI Dimming

This product is a DALI-2 rotary switch only, required for multiway DALI dimming when purchased with a Simple DALI Rotary Dimmer (IEL-Z8-1-PSU c/w DALI-2 PSU) or Simple DALI Dimmer (IEL-Z6-1-PSU c/w DALI-2 PSU)

This Simple DALI rotary switch can also be used with IEL-zc-pir-st-da (Simple DALI pir sensor with DALI PSU).

When installed with any of the above products, this rotary switch provides “out of the box” control (no programming required).

For details of sensor/rotary switch control when used with Simple DALI pir sensor:

View here

Full dimmable control of DALI light fittings via rotary switches from two or more switch positions (i.e. opposite sides of the room):

  • Up and down dimming is achieved by turning the knob left or right.
  • On and off control can be activated by pushing the switch in.
  • Works with DALI light fittings, relays and loads.
  • On/off and dimmable control

Adding this item to your cart, provides an additional DALI-2 rotary switch with NZ style faceplate (white) as default. If required the rotary can be used in an alternative client-supplied faceplate with a 30-series mount.

See below for wiring schematic and links to download datasheets.

Download datasheet for DALI-2 PSU   Download datasheet for DALI Rotary Switch

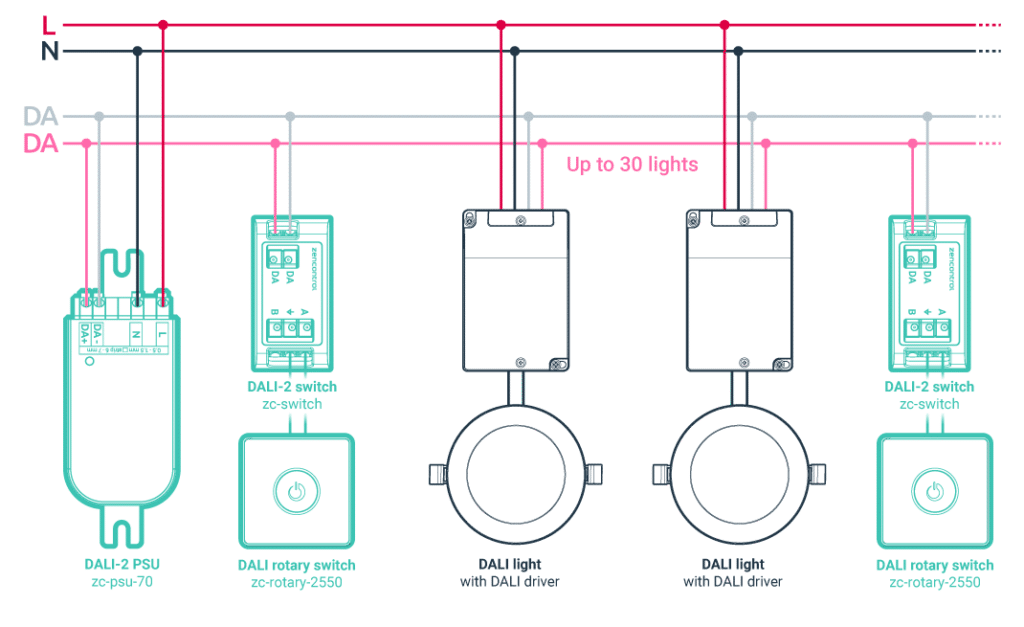

Schematic for multiway switching using two or more DALI-2 Rotary Switches:

Application Rotary dimmer multiway 1024x627 - Simple DALI Rotary Switch For DALI dimming
