Simple DALI Dimmer c/w DALI PSU + Pushbutton

$205.00$210.00 inc gst $178.26 exc gst

Out of the box control (no programming required). Comes with DALI PSU, plus DALI-2 pushbutton white or black (NZ style plain faceplate – differs from displayed image).

Full dimmable control of DALI light fittings, relays and loads. On / off and dimmable control.

For further information see schematic and download datasheets from description tab below.

Clear

Simple DALI Pushbutton Dimmer

The Simple DALI Pushbutton Dimmer provides full dimmable control of DALI light fittings, relays and loads. On / off and dimmable control.

Out of the box control (no programming required). Comes with DALI PSU, plus DALI-2 pushbutton and NZ style plain faceplate (white or black – differs from image displayed). If required pushbutton can be used in an alternative client-supplied faceplate with a 30-series mount.

  • DALI-2 certified
  • Compliant to IEC 62386-301
  • Multiple control devices per line
  • Suitable for DALI-2 application controller
  • Upgradeable to match changes in DALI standards
  • Small form factor for mounting behind switch panels
  • Powered directly from DALI line, no separate supply required
  • Expandable to enable control of scenes / groups / actions / events with a zencontrol control system

Please note: for multiway dimming additional Simple DALI Pushbutton Switch(es) or Simple DALI Rotary Switch(es)  will be required. Up to 30 light fittings can be controlled (if one DALI driver per fitting) but this will be dependent on DALI power availability.

Download datasheet for DALI-2 PSU          Download datasheet for DALI-2 Pushbutton Switch

IMPORTANT:

  • The switch must not be connected to any mains. It is powered directly from the DALI line.
  • Input switches should be connected directly to the switch. They shall be volt-free contacts and must not be connected to mains.
  • The DALI line is not SELV. It must be treated like LV mains and treated with the same precautions and wiring regulations.

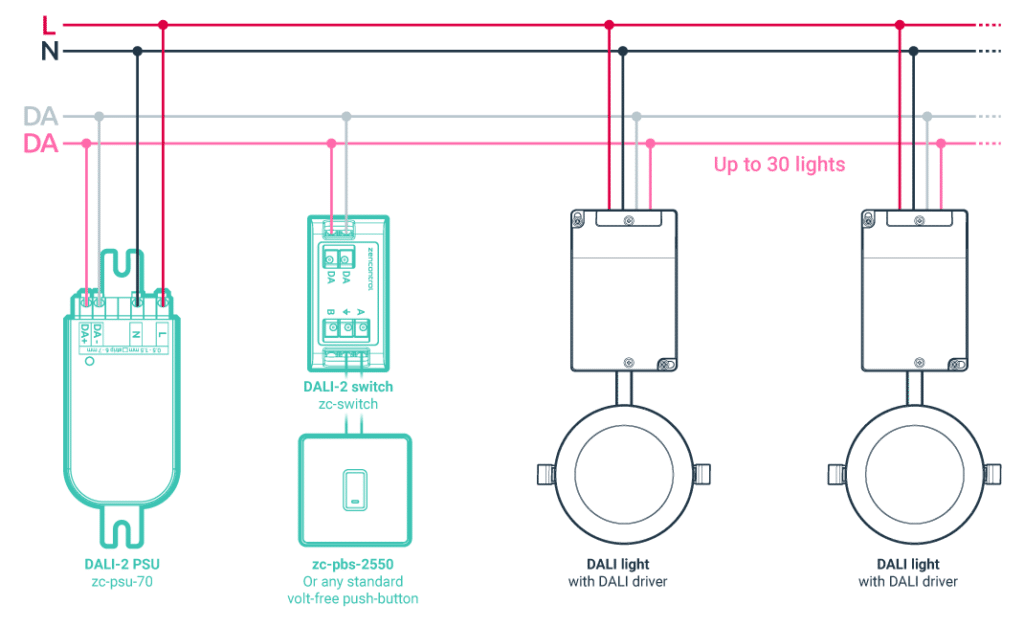

Wiring Schematic

Application DALI pushbutton dimmer 1024x627 - Simple DALI Dimmer c/w DALI PSU + Pushbutton

Additional information

Options Available:

with white pushbutton, with black pushbutton
