Tunable White – DT8 – Rotary Control

DALI Rotary Dimmer
DALI-2 power supply
DALI rotary dimmer with psu

$205.00 – $213.00 inc gst $178.26 exc gst

Tuneable White – Rotary control of DALI DT8 drivers. Out of the box solution controlling brightness and colour of up to 30 lights (no programming required).

The switch works with DALI DT8 drivers which support TC colour modes.
For further information see schematic and download datasheets from description tab below.

SKU: IEL-ZC-DT8-ROT-1 Categories: , Tags: ,

Tunable White – Rotary Control of DALI DT8 Drivers

Tunable white describes the ability to change the colour temperature of “white light” from warm to cool. Tunable white is an important technology when attempting to match lighting colour to the appropriate time of day to respond to circadian rhythm.

Change the colour of TC DALI drivers with a rotary switch:

  • The switch works with DALI DT8 drivers which support TC colour modes.
  • Left or right turn of the knob will adjust the brightness of the luminaire.
  • Pushing in and holding the knob will adjust the colour.
  • Let go and press again to change the colour in the opposite direction.
  • A short press of the switch will turn the lighting on or off.

Download datasheet for DALI-2 PSU          Download datasheet for DALI-2 Rotary Switch

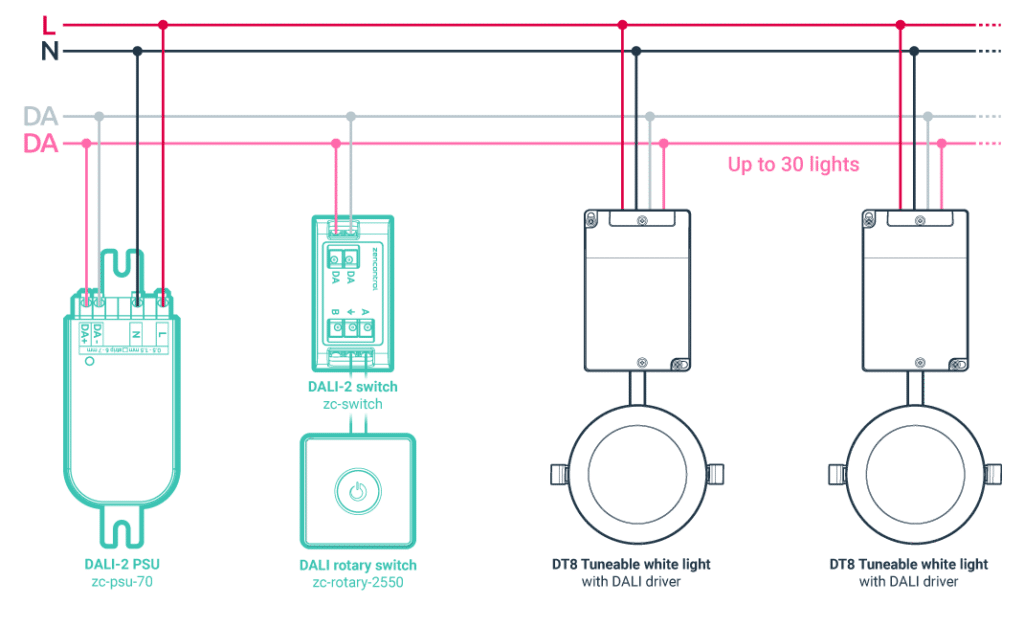

Application DT8 Tuneable white 1024x627 - Tunable White - DT8 - Rotary Control

Additional information

Options Available:

with White Rotary Switch, with Black Rotary Switch
