DALI Colour Control Scene Panel – DT8

DALI Colour Control Scene Panel - DT8
DALI-2 power supply

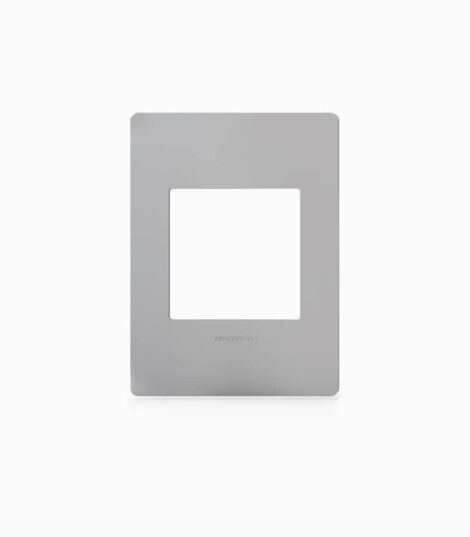

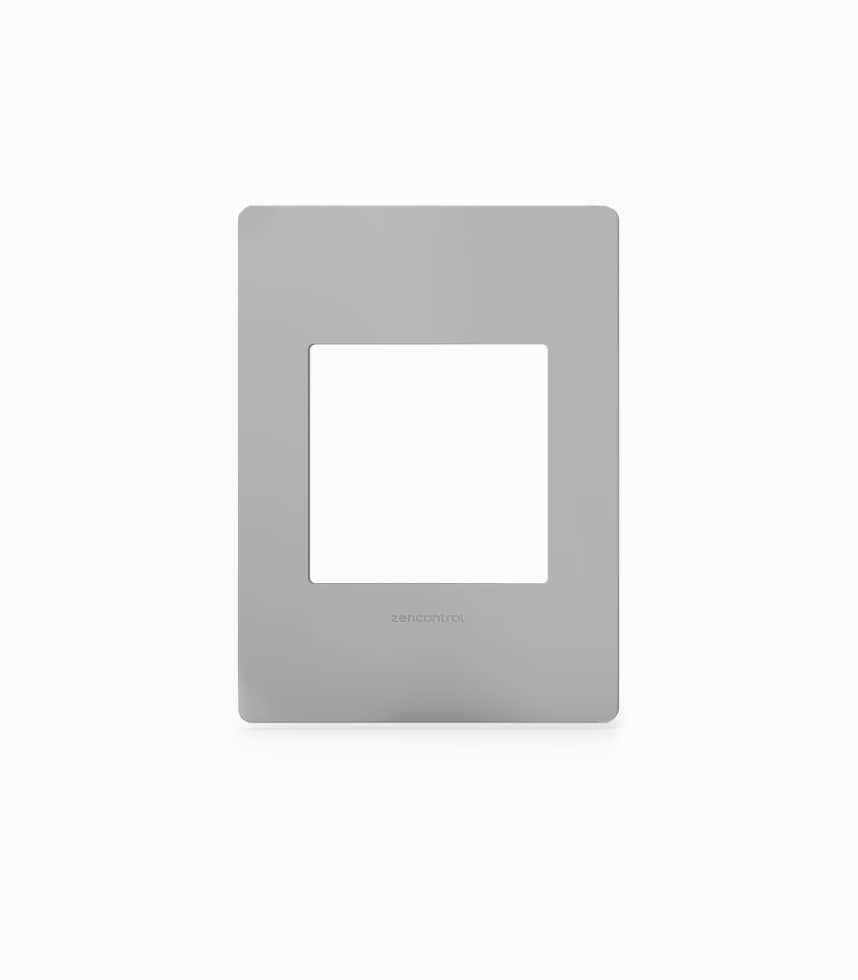

DALI scene panel fascia stainless steel

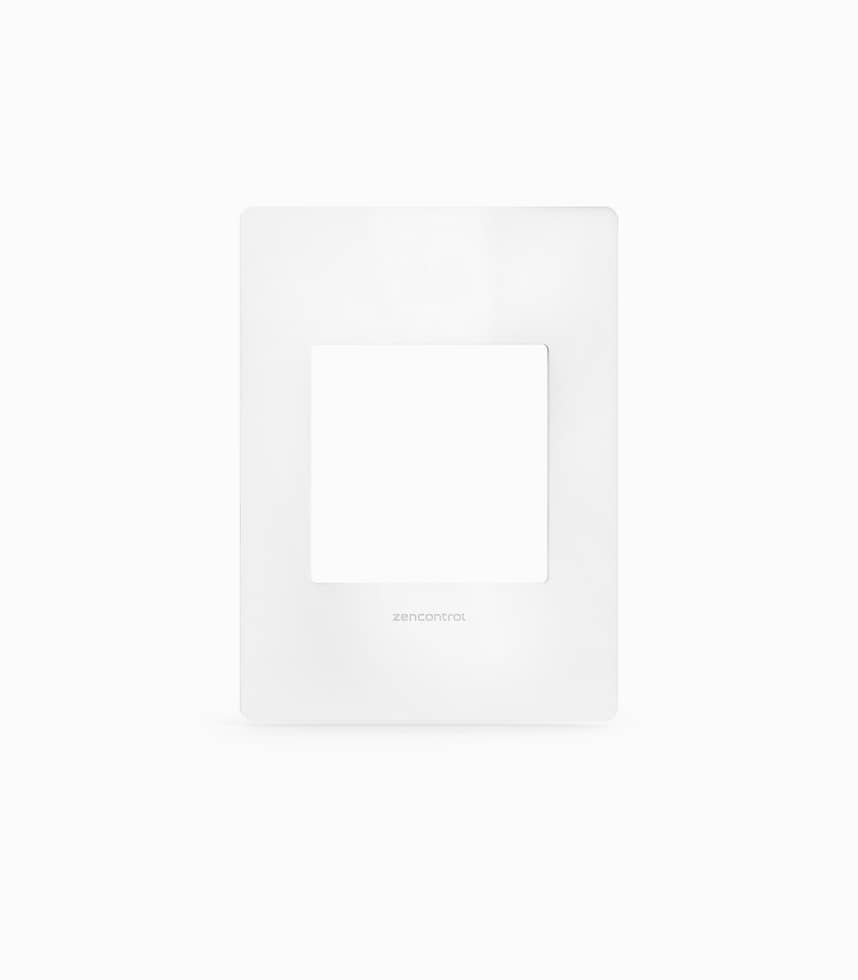

DALI scene panel fascia white glass

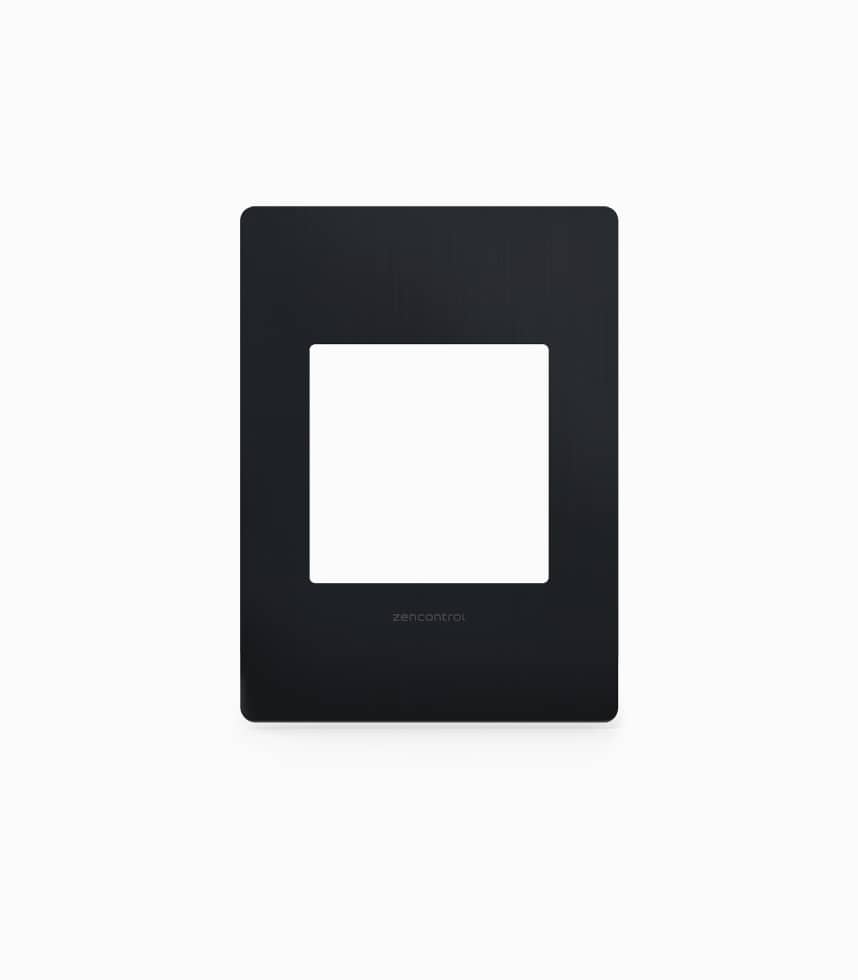

DALI scene panel fascia black glass

$407.00 inc gst $353.91 exc gst

The DALI colour control switch works with DALI DT8 drivers which support TC colour modes. Choose preferred faceplate option when ordering.

For further information see schematic and download datasheets from description tab below.

SKU: IEL-ZC-SP-1 Categories: , Tags: ,

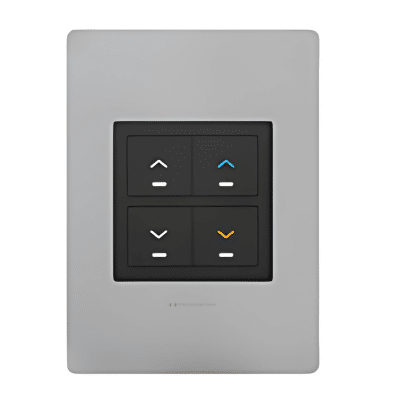

DALI Colour Control Scene Panel will change the colour via TC DALI drivers:

  • DALI-2 certified.
  • Designed for compliance with IEC 62386-301
  • Comes with DALI PSU.
  • The DALI scene panel works with DALI DT8 drivers which support TC colour modes.
  • Four discrete buttons provide simple adjustment of colour and brightness.
  • Choice of faceplates: stainless steel, white glass, black glass.

Note: See wiring diagram below. The scene panel must not be connected to any mains. It is powered directly from the DALI line.

Download datasheet for DALI-2 PSU          Download datasheet for DALI-2 Colour Control Scene Panel

Sceneset 470x332 - DALI Colour Control Scene Panel - DT8

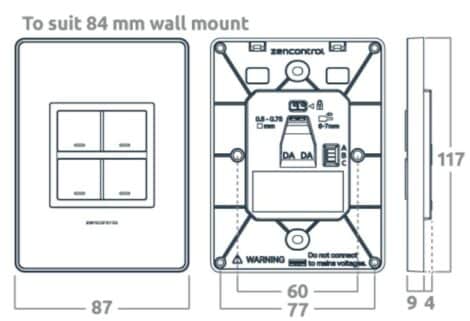

Scene Panel 84mm wall mount 470x321 - DALI Colour Control Scene Panel - DT8



















As an option add full dimmable control of the DALI light fittings by the addition of a DALI Rotary Switch:

  • Up and down dimming is achieved by turning the knob left or right.
  • On and off control can be activated by pushing the switch in.
  • Works with DALI light fittings, relays and loads.
  • On/Off and dimmable control.

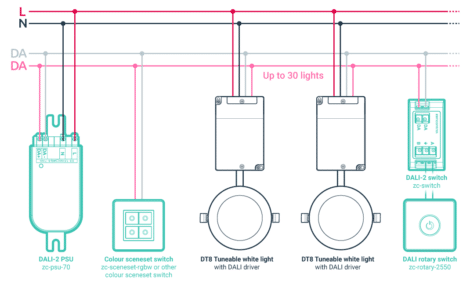

Application Colour sceneset Rotary 470x288 - DALI Colour Control Scene Panel - DT8

Additional information

Faceplate Options

Stainless Steel, Black Stainless, White Glass, Black Glass
